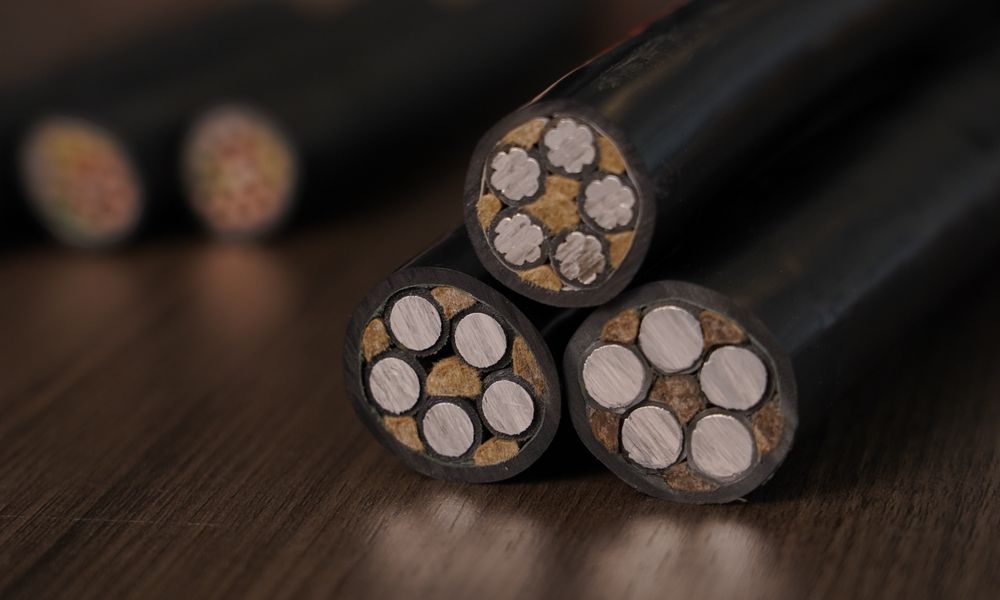

Aluminum alloy cable
Aluminum alloy power cables make up for the shortcomings of previous pure aluminum cables. Although the electrical conductivity of the cables is not improved, the bending performance, creep resistance and corrosion resistance are greatly improved, which can ensure that the cables maintain continuous and stable performance when overloaded and overheated for a long time.
Related Products
1. Product characteristics
Aluminum aloy power cable makes up for the shortcomings of pure aluminum cable in the past, although it does not improve the electril.cal conductivity of the cable, but the bending performance, creep resistance and corrosion resistance are areaty improved, which can ensurethat the cable maintains continuous performance and stability when overloaded and overheated for a long time.
2.Standard
GB/T31840:1 ~ 3 ~ 2015 Rated voltage: 1kV(Um=1.2kV) to 35kV(Um=40kv) aluminum alloy extruded insulated power cable
3. Model and name
| Model | Name |
| YJLHV(TC90) | XLPE insulated PVC sheathed aluminum alloy power cable |
| YJLH6(AC90 | Cross-linked polyethylene insulated aluminum alloy belt chain armored aluminum alloy power cable |
| YJLHVS2 | XLPE insulated PVC sheathed aluminum alloy belt chain armored aluminum alloy power cable |
| YJLH22 | XLPE insulated PVC sheathed steel tape armored aluminum alloy power cable |
| VLHV | PE insulated PVC sheathed aluminum alloy power cable |
| VLHV22 | PE insulated PVC sheathed aluminum alloy power cable |
4.Specification size and main property
| Nominal section of conductor |
Conductor diameter |
Insulation thickness |
Approximate outer diameter of cable |
Approximate weight of cable |
Conductor DC at 20℃℃ |
the cable ampacity In the air |
| mm2 | mm | mm | mm | kg/km | resistance≤Ω/km | A |
| 10 | 4.00 | 0.7 | 18.80 | 316 | 3.08 | 63 |
| 16 | 5.00 | 0.7 | 18.80 | 384 | 1.91 | 78 |
| 25 | 6.00 | 0.9 | 21.70 | 439 | 1.20 | 93 |
| 35 | 7.00 | 0.9 | 23.90 | 505 | 0.868 | 119 |
| 50 | 8.30 | 1.0 | 29.60 | 733 | 0.641 | 157 |
| 70 | 9.90 | 1.1 | 33.80 | 892 | 0.443 | 181 |
| 95 | 11.40 | 1.1 | 37.20 | 1340 | 0.320 | 234 |
| 120 | 12.90 | 1.2 | 40.70 | 1535 | 0.253 | 284 |
| 150 | 14.30 | 1.4 | 45.00 | 1822 | 0.206 | 330 |
| 185 | 15.90 | 1.6 | 49.30 | 2120 | 0.164 | 363 |
| 240 | 18.20 | 1.7 | 54.50 | 2885 | 0.125 | 418 |
| 300 | 50.40 | 1.8 | 59.70 | 3405 | 0.100 | 467 |
| 400 | 23.60 | 2.0 | 67.00 | 4163 | 0.0778 | 536 |
Our advantage
High transmission efficiency
Cables can efficiently transmit electrical energy and signals, providing stable power supply and communication transmission.
Strong anti-interference ability
The insulation layer of the cable can effectively isolate external electromagnetic interference and provide reliable signal transmission and power distribution.
Safe and reliable
The cables are professionally designed and manufactured, have good heat resistance, pressure resistance, and weather resistance, and can work safely and reliably under various environmental conditions.
Cost effective
Compared with other power transmission methods, such as aerial power transmission, cables have the advantages of small footprint and low line loss, saving resources and costs.
Flexible and diverse
Cables can be customized according to different needs, including the selection of conductor materials, insulation layer materials, number of cores, cross-sectional size and other parameters, and are suitable for different scenarios and applications.
Long life
High-quality cables are properly designed and manufactured to have a long service life, reducing maintenance and replacement costs.
Energy saving
Cables do not need to burn fuel when transmitting electrical energy, do not produce waste gas and environmental pollution, and meet the requirements of sustainable development.
High transmission efficiency
Cables can efficiently transmit electrical energy and signals, providing stable power supply and communication transmission.
Strong anti-interference ability
The insulation layer of the cable can effectively isolate external electromagnetic interference and provide reliable signal transmission and power distribution.
Safe and reliable
The cables are professionally designed and manufactured, have good heat resistance, pressure resistance, and weather resistance, and can work safely and reliably under various environmental conditions.
Cost effective
Compared with other power transmission methods, such as aerial power transmission, cables have the advantages of small footprint and low line loss, saving resources and costs.
Flexible and diverse
Cables can be customized according to different needs, including the selection of conductor materials, insulation layer materials, number of cores, cross-sectional size and other parameters, and are suitable for different scenarios and applications.
Long life
High-quality cables are properly designed and manufactured to have a long service life, reducing maintenance and replacement costs.
Energy saving
Cables do not need to burn fuel when transmitting electrical energy, do not produce waste gas and environmental pollution, and meet the requirements of sustainable development.
