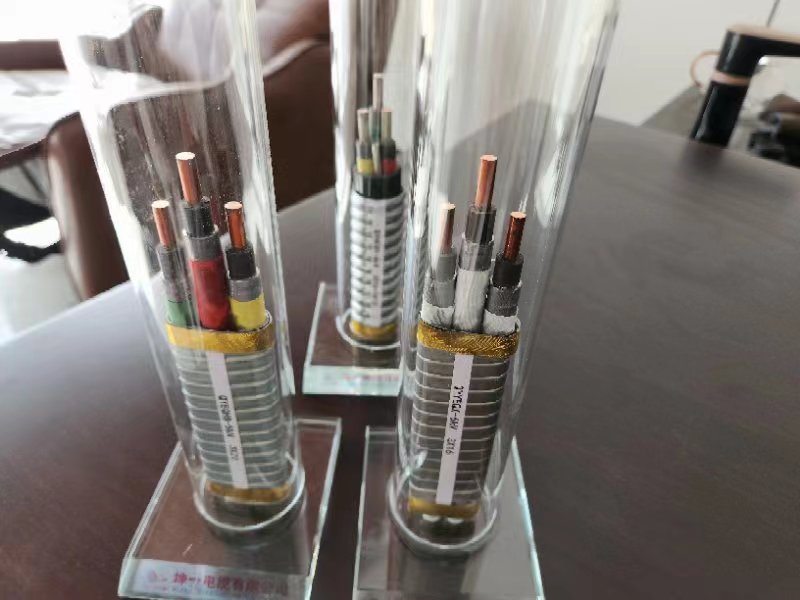

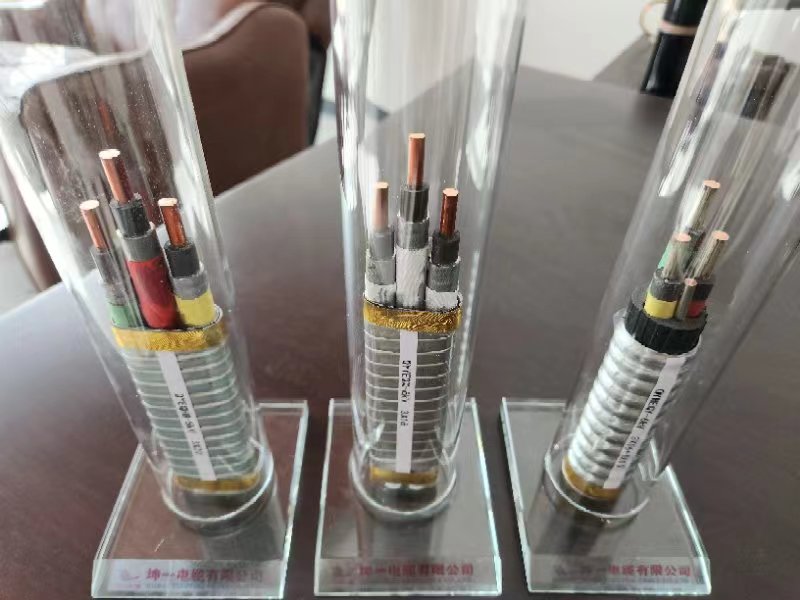

Submersible oil pump cable
This product is suitable for supporting power supply of submersible electric pump units with rated voltage less than 3KV or less than 6KV.
Related Products
1.Product model
Polypropylene insulation, NBR-PVc compound sheath, ptef/fiber tape burning package, galvanized (stainless steel, Monel) steel tapearmored flat submersible pump power cable.
2.Production range
Voltage: 3kV 4kV 5kV 6kV Temperature: Conductor long-term operating temperature 90°C (194°F).
3.mplementation of standards
GB/T16750-2008，APIRP 11S6-2008
4. Scope of application
This product is suitable for supporting power supply of submersible pump units with rated voltage less than 3kV or 6kv.
|
Number of cores |
Nominal mm2 |
Number of conductors/single nominal diameter mm |
The DC resistance of the conductor at 20°C is not large ≤Q/km |
Insulation nominal thickness mm |
Nominal thickness of sheath mm |
Dimensions and weight (flat cable) |
|||||
| 3kV | 6kV | ||||||||||
| 3kV | 6kV | 3kV | 6kV | mm×mm | kg/km | mm×mm | kg/km | ||||
| 3 | 16 | 1/4.62 | 1.160 | 1.9 | 2.3 | 1.3 | 1.3 | 14×37 | 1278 | 18×42 | 1390 |
| 3 | 20 | 1/5.19 | 0.856 | 1.9 | 2.3 | 1.3 | 1.3 | 15×39 | 1449 | 19×44 | 1580 |
| 3 | 33.5 | 1/6.54 | 0.538 | 1.9 | 2.3 | 1.3 | 1.3 | 16×44 | 1643 | 21×50 | 1760 |
| 3 | 42.5 | 1/7.35 | 0.44 | 1.9 | 2.3 | 1.3 | 1.3 | 17×47 | 2158 | 22×54 | 2270 |
|
Nominal cross section |
Conductor nominal diameter |
1.9mm Insulation resistance |
1.9mm leakage current |
2.3mm Insulation resistance |
2.3mm leakage current |
DC withstand voltage 5 minutes |
||
|
mm2 |
AWG | mm | MΩ·km | μA/km/kV15.6℃ | MΩ·km | μA/km/kV | 3kV | 6kV |
| 16 | 5 | 4.62 | 4500 | 0.278 | 5400 | 0.246 | 27kV | 35kV |
| 20 | 4 | 5.19 | 3380 | 0.295 | 3869 | 0.262 | 27kV | 35kV |
| 33.5 | 2 | 6.54 | 2530 | 0.394 | 2922 | 0.328 | 27kV | 35kV |
| 42.5 | 1 | 7.35 | 2300 | 0.427 | 2658 | 0.361 | 27kV | 35kV |
Our advantage
High transmission efficiency
Cables can efficiently transmit electrical energy and signals, providing stable power supply and communication transmission.
Strong anti-interference ability
The insulation layer of the cable can effectively isolate external electromagnetic interference and provide reliable signal transmission and power distribution.
Safe and reliable
The cables are professionally designed and manufactured, have good heat resistance, pressure resistance, and weather resistance, and can work safely and reliably under various environmental conditions.
Cost effective
Compared with other power transmission methods, such as aerial power transmission, cables have the advantages of small footprint and low line loss, saving resources and costs.
Flexible and diverse
Cables can be customized according to different needs, including the selection of conductor materials, insulation layer materials, number of cores, cross-sectional size and other parameters, and are suitable for different scenarios and applications.
Long life
High-quality cables are properly designed and manufactured to have a long service life, reducing maintenance and replacement costs.
Energy saving
Cables do not need to burn fuel when transmitting electrical energy, do not produce waste gas and environmental pollution, and meet the requirements of sustainable development.
