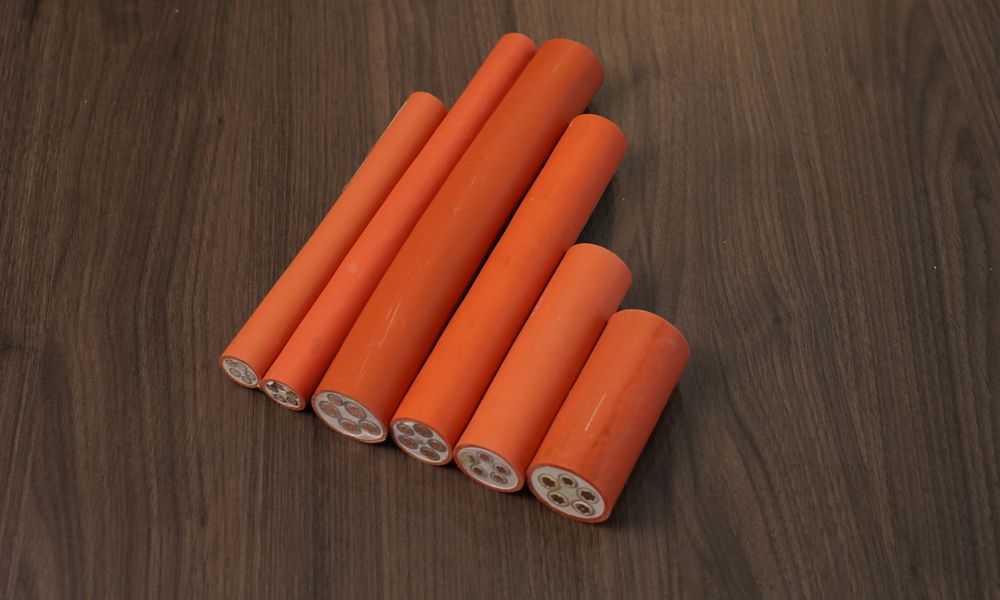

BBTRZ (flexible fire prevention)
This product is used for AC 50Hz rated voltage 0.6/1kV and below fire emergency system transmission and distribution lines.
Related Products
0.6/1kV and below flexible mineral insulated fireproof cables
1.lmplementation of standards
The mechanical and physical properties and electrical properties of the cable are implemented in the relevant enterprise standards,British standards Bs 6387:2013 and BS 8491:2008.
2. Scope of use
This product is used for AC 50Hz rated voltage 0.6/1kV and below fire emergency system transmission and distribution lines.
3.cable structure
1.conductor
2.Inorganic mineral insulation
3.Crosslinked polyethylene insulation
4.Halogen-free filler strip
5.Mineral fire shield
6.High flame retardant strip
7.Low smoke halogen-free fame retardant sheath
4.Use characteristics
Rated operating voltage: 450/750V 0.6/1kV
The ambient temperature should not be lower than 0 °C when the cable is laid
The minimum allowable bending radius of the cable should not be less than 15 times the outer diameter of the cable
5.cable type, name, laying occasion
| Model | Voltage class | Specifications | Core | Name | Laying occasion |
| BBTRQ | 450/750V 0.6/1kV |
1.5-630mm2 | 1-5 | Copper core flexible mineral insulated fireproof cable (light type) | Can be laid indoors, outdoors, in cable wells, cable tunnels, bridges and cable ducts |
| BBTRZ (TBTRZY) |
450/750V 0.6/1kV |
1.5-630mm2 | 1-5 | Copper core flexible mineral insulated fireproof cable | Can be directly buried, laid indoors, outdoors, in cable wells, cable tunnels and cable pipes |
6.cable structure parameters, electrical parameters
|
Nominal cross section |
Conductor diameter |
Composite insulation thickness |
Approximate outer diameter of cable |
Approximate cable weight kg/km |
20℃ conductor DC resistance value Ω/km |
Long-term allowable current carrying capacity (A) in air |
| 1×2.5 | 1.78 | 0.9 | 11.3 | 11.3 | 7.41 | 43 |
| 1×4 | 2.25 | 0.9 | 11.7 | 11.7 | 4.61 | 56 |
| 1×6 | 2.76 | 0.9 | 12.2 | 12.2 | 3.08 | 70 |
| 1×10 | 4.1 | 0.9 | 14.2 | 14.2 | 1.83 | 94 |
| 1×16 | 5.0 | 0.9 | 15.1 | 15.1 | 1.15 | 125 |
| 1×25 | 6.0 | 1.1 | 16.7 | 16.7 | 0.727 | 160 |
| 1×35 | 7.0 | 1.1 | 17.7 | 17.7 | 0.524 | 200 |
| 1×50 | 8.2 | 1.2 | 19.3 | 19.3 | 0.387 | 240 |
| 1×70 | 9.9 | 1.3 | 21.2 | 21.2 | 0.268 | 305 |
| 1×95 | 11.6 | 1.3 | 23.1 | 23.1 | 0.19. | 375 |
| 1×120 | 13.0 | 1.4 | 24.7 | 24.7 | 0.153 | 430 |
| 1×150 | 14.5 | 1.6 | 26.8 | 26.8 | 0.124 | 495 |
| 1×185 | 16.2 | 1.8 | 29.1 | 29.1 | 0.0991 | 570 |
| 1×240 | 18.4 | 1.9 | 32.5 | 32.5 | 0.0754 | 685 |
| 1×300 | 20.7 | 2.0 | 35.2 | 35.2 | 0.0601 | 795 |
| 1×400 | 23.5 | 2.2 | 38.6 | 38.6 | 0.0470 | 930 |
Three-phase AC frequency: 50Hz
Conductor operating temperature: 90°C
Air humidity: 40℃
|
Nominal cross section |
Conductor diameter |
Composite insulation thickness |
Approximate outer diameter of cable |
Approximate cable weight kg/km |
20℃ conductor DC resistance Ω/km |
Long-term allowable curren t carrying capacity (A) in air |
| 2×2.5 | 1.78 | 0.9 | 11.3 | 221.1 | 7.41 | 43 |
| 2×4 | 2.25 | 0.9 | 11.7 | 245.8 | 4.61 | 56 |
| 2×6 | 2.76 | 0.9 | 12.2 | 277.9 | 3.08 | 70 |
| 2×10 | 4.1 | 0.9 | 14.2 | 350.6 | 1.83 | 94 |
| 2×16 | 5.0 | 0.9 | 15.1 | 427.7 | 1.15 | 125 |
| 2×25 | 6.0 | 1.1 | 16.7 | 559.8 | 0.727 | 160 |
| 2×35 | 7.0 | 1.1 | 17.7 | 674.6 | 0.524 | 200 |
| 2×50 | 8.2 | 1.2 | 19.3 | 835.8 | 0.387 | 240 |
| 2×70 | 9.9 | 1.3 | 21.2 | 1079.9 | 0.268 | 305 |
| 2×95 | 11.6 | 1.3 | 23.1 | 1375.9 | 0.19. | 375 |
| 2×120 | 13.0 | 1.4 | 24.7 | 1646.8 | 0.153 | 430 |
| 2×150 | 14.5 | 1.6 | 26.8 | 1973.4 | 0.124 | 495 |
| 2×185 | 16.2 | 1.8 | 29.1 | 2390.8 | 0.0991 | 570 |
| 2×240 | 18.4 | 1.9 | 32.5 | 3098.5 | 0.0754 | 685 |
| 2×300 | 20.7 | 2.0 | 35.2 | 9758.3 | 0.0601 | 795 |
| 2×400 | 23.5 | 2.2 | 38.6 | 4659.3 | 0.0470 | 930 |
