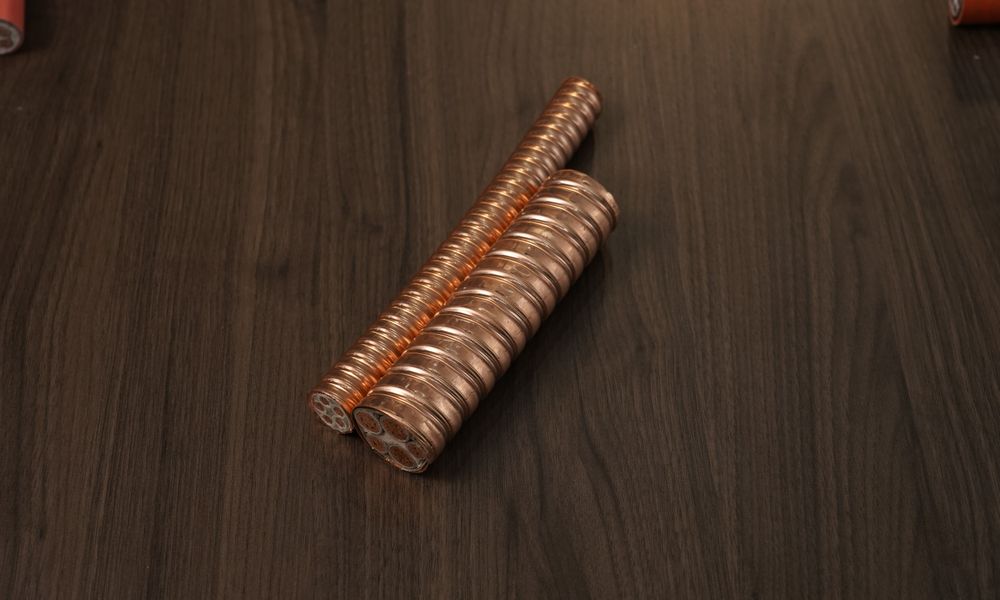

YTTW (flexible fire prevention)
This product is used for AC 50 Hz rated voltage 0.6/ikV and below fire and emergency light system transmission and distri-bution lines.
Related Products
1.lmplementation of standards
The mechanical and physical properties and electrical properties of the cable are implemented in the relevant enter-prise standards, British standards BS 6387:2013 and BS 8491:2008.
2. Scope of use
This product is used for AC 50 Hz rated voltage 0.6/ikV and below fire and emergency light system transmission and distri-bution lines.

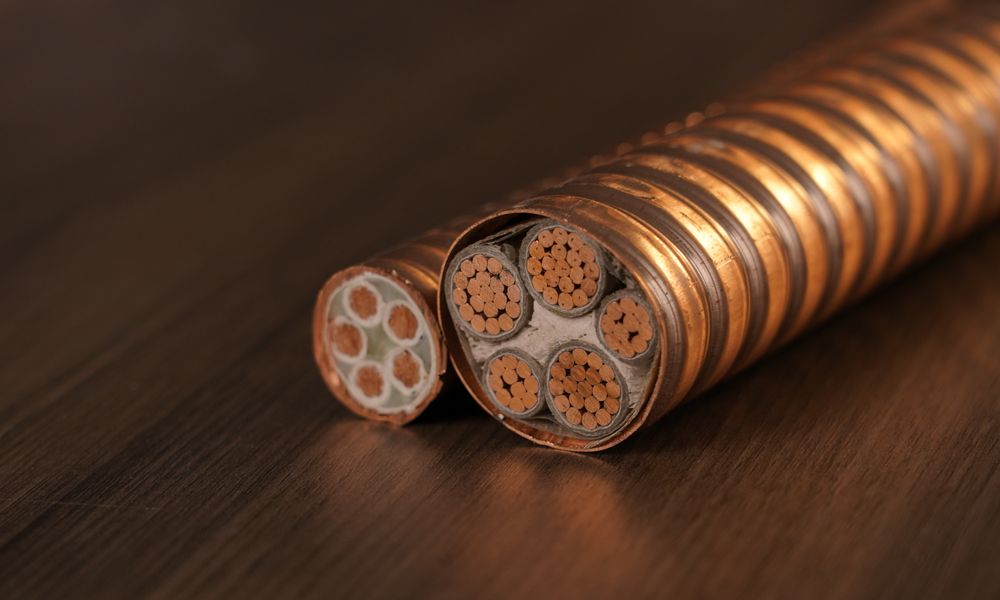

3.cable structure
1.conductor
2.Inorganic mineral insulatio
3.Flame retardant filling
4.High flame retardant strip
5.Metal rolled sheath
4.Use characteristics
Rated working voltage: 450/750V, 0.6/1kV
Minimum allowable bending radius of cable:
|
Cable outer diameter mm |
D≤12 | 12D20 | 20D40 |
| Allowable bending radius of cable | 6D | 10D | 15D |
(D is the outer diameter of the cable)
5.cable type, name, laying occasion
| Model | Voltage class | Specifications | Core | Name | Laying occasion |
|
YTTW(BTTW) |
450/750V 0.6/1kv |
1.5-630mm2 | 1-5 | Copper core corrugated copper sheathed inorganic mineral insulated flexible fireproof cable | Can be laid indoors, in cable wells, cable tunnels, bridges, brackets, hangers and cable ducts |
|
YTTWY(BTTWY) |
450/750V 0.6/1kv |
1.5-630mm2 | 1-5 | Copper core corrugated copper sheathed inorganic mineral insulated polyolefin anti-corrosion jacket flexible fireproof cable | Can be directly buried, laid indoors, outdoors, in cable wells, cable tunnels, bridges, brackets, hangers and cable ducts |
6.cable structure parameters, electrical parameters
| Nominal cross section mm2 |
Conductor diameter mm |
Composite insulation thickness |
Approximate outer diameter of cable mm |
Approximate cable weight kg/km |
Maximum DC resistance of conductor at 20℃ Ω/km |
Maximum DC resistance of copper sheath at 20℃ Ω/km |
Long-term allowable current carrying capacity (A) in air |
| 1×1.5 | 1.36 | 0.8 | 5.8 | 94.50 | 12.1 | 2.677 | 26 |
| 1×2.5 | 1.78 | 0.8 | 6.6 | 116.39 | 7.41 | 2.329 | 34 |
| 1×4 | 2.25 | 0.8 | 7.1 | 138.03 | 4.61 | 2.168 | 44 |
| 1×6 | 2.76 | 0.8 | 7.6 | 165.28 | 3.08 | 2.017 | 58 |
| 1×10 | 4.1 | 1.0 | 9.4 | 232.65 | 1.83 | 1.625 | 77 |
| 1×16 | 5.0 | 1.0 | 10.7 | 306.26 | 1.15 | 1.421 | 100 |
| 1×25 | 6.0 | 1.0 | 11.7 | 405.95 | 0.727 | 1.296 | 128 |
| 1×35 | 7.0 | 1.1 | 13.3 | 517.81 | 0.524 | 1.136 | 163 |
| 1×50 | 8.2 | 1.2 | 14.7 | 696.16 | 0.387 | 0.826 | 200 |
| 1×70 | 9.9 | 1.2 | 17.0 | 945.53 | 0.268 | 0.711 | 253 |
| 1×95 | 11.6 | 1.2 | 18.9 | 1219.09 | 0.193 | 0.638 | 317 |
| 1×120 | 13.0 | 1.2 | 20.3 | 1469.23 | 0.153 | 0.593 | 361 |
| 1×150 | 14.5 | 1.4 | 23.0 | 1783.87 | 0.124 | 0.522 | 412 |
| 1×185 | 16.2 | 1.4 | 24.7 | 2150.42 | 0.0991 | 0.485 | 479 |
| 1×240 | 18.4 | 1.4 | 27.5 | 2809.28 | 0.0754 | 0.364 | 576 |
| 1×300 | 20.7 | 1.6 | 30.2 | 454.84 | 0.0601 | 0.331 | 654 |
| 1×400 | 23.5 | 1.6 | 34.2 | 4304.32 | 0.0470 | 0.291 | 749 |
| 1×500 | 26.7 | 1.8 | 37.6 | 5372.41 | 0.0366 | 0.265 | 855 |
| 1×630 | 30.4 | 2.0 | 41.9 | 6807.94 | 0.0283 | 0.237 | 998 |
Conductor operating temperature: 90°C
Air humidity: 40℃
